Ground Power Unit | Mobile GPU Civil Aviation

SINE GPU MOBILE | 20KVA - 180 KVA

Free Quote
SINE GPU Mobile
SINE GPU Mobile

Our mobile GPUs for civil aviation can power aircraft on the ground (AC or DC - combi units) to start the aircraft's engine and auxiliary power unit (APU), but also to provide on-board power. These transportable and robust units can withstand even the harshest conditions and are extremely stable and solid.

Input
Input

• 4 Quadrant Operation (better response of the system and safer operation for NBPT)

• Low input harmonics (<1.5% THDi), to comply with the strictest regulations at any load.

Technology
Technology

State-of-the-art semiconductor technology (IGBT) guarantees Unity Power Factor and Low Input Harmonics (THDi < 1.5%).

Options
Options

The mobile GPU for Civil Aviation is available in three options:

AC

• 30 kVa - 90 kVA Mobile

• 120 kVA Mobile

• 180 kVA Mobile

DC

• 28VDC GPU Mobile

AC + DC (Combi)

• 30 kVa - 90 kVA GPU Combi

• 120 kVA GPU Combi

• 180 kVA GPU Combi

Output
Output

• Voltage compensation (Load Dependent or via Remote Feedback – Real PLUG&PLAY connect GPU to aircraft and voltage compensation is done automatically, no user adjustment required or additional accessories);

• 4 Quadrant Operation (better response of the system and a safer operation for NBPT);

• Vector control Inverter for better response and higher efficiency.

Efficiency
Efficiency

• Up to 94% efficiency - 30KVA to 90kVA at load PF = 0.8 to 1.0;

• 90% efficiency - < 30 kVA @ load PF = 0.8 to 1.0;

• Green Standby Function - losses: 20 W;

• No load losses: < 1% of total power.

Gallery

*Note: All images are merely representative. For detailed information regarding size, weight, and other technical details, download the sheets available in the download section below.

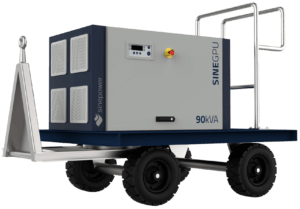

mobile gpu aviation sinepower

GPU 400HZ | 30 KVA – 90 KVA

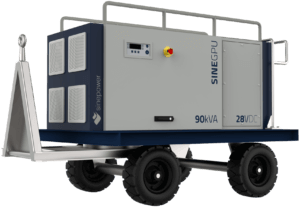

mobile gpu aviation combi sinepower

GPU 400HZ | 30 KVA – 90 KVA COMBI

sinepower 28 vdc gpu mobile

28 VDC GPU – MOBILE

Downloads

GPU 400HZ | 30 KVA – 90 KVA
GPU 400HZ | 30 KVA – 90 KVA COMBI
28 VDC GPU – MOBILE UNIT

Specifications

Standards

AVIATION

  • ISO 6858 Aircraft ground support electric supplies.
  • SAE ARP 5015 Ground equipment 400 Hz ground power performance requirement.

MILITARY

  • MIL-STD-704 Aircraft electric power characteristics.

EMC

  • EN 61000-6-4 EMC - Generic emission standard.
  • EN 61000-6-2 EMC - Generic immunity standard.

SAFETY

  • IEC 62477-1 Safety requirements for power electronic converter systems and equipment.
  • IEC 60529 Degrees of protection provided by enclosures (IP).
