Ground Power Unit | Military Aviation GPU | Solid State

SINE GPU | 400Hz GPU | 30 KVA - 180 KVA

SINE GPU
SINE GPU

Our Military Aviation GPUs (Ground Power Units) are very efficient, easy to operate and maintain. They use double conversion technology with an integrated inverter output transformer to ensure galvanic isolation of the load.

Input
Input

• 4 Quadrant Operation (better response of the system and safer operation for NBPT).

• Low input harmonics (<1.5% THDi), to comply with the strictest regulations at any load.

Technology
Technology

High frequency IGBT Technology (Rectifier and Inverter) to guarantee a sinewave input current with low input harmonics (THD‹1.5%) and unit power factor (PF=1). That is ideal for military applications as we guarantee minimum impact on the mains or other power sources upstream.

No Break Power Transfer compatibility (NBPT).

Options
Options

Our Military Aviation GPUs can support AC and Combi power output simultaneously, as long as the total load power does not exceed the power of the unit itself.

Available ranges are:

1) AC

• 30 kVA - 90 kVA (400Hz Unit)

• 120 kVA (400Hz Unit)

• 180 kVA (400Hz Unit)

2) Combi:

• 30 kVA - 90 kVA Combi (400Hz Unit + 28VDC)

• 120 kVA Combi (400Hz Unit + 28VDC)

• 180 kVA Combi (400Hz Unit + 28VDC)

Output
Output

An output of 200V 3 phase 400Hz to the aircraft through single or dual output. Can be connected to a standard 380V to 415V 3 phase 50Hz mains or other.

Efficiency
Efficiency

Our Military Aviation GPUs are highly efficient - up to 95% efficiency.

Gallery

*Note: All images are merely representative. For detailed information regarding size, weight, and other technical details, download the sheets available in the download section below.

military aviation gpu sinepower

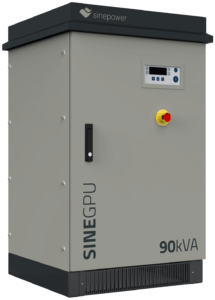

GPU 400Hz | 30 KVA – 90 KVA

military aviation gpu sinepower

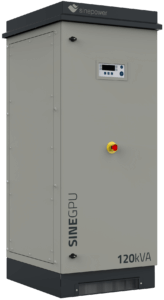

GPU 400Hz | 120 KVA

military aviation gpu sinepower

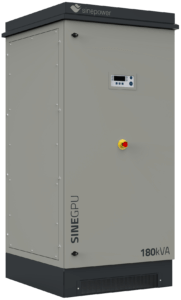

GPU 400Hz | 180 kVA

military aviation gpu sinepower

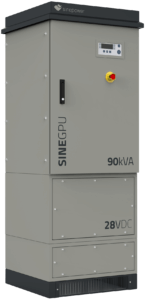

COMBI | 30 KVA – 90 kVA (400Hz Unit + 28VDC)

Downloads

Specifications

Standards

AVIATION

  • ISO 6858 Aircraft ground support electric supplies.
  • SAE ARP 5015 Ground equipment 400 Hz ground power performance requirement.

MILITARY

  • MIL-STD-704 Aircraft electric power characteristics.

EMC

  • EN 61000-6-4 EMC - Generic emission standard.
  • EN 61000-6-2 EMC - Generic immunity standard.

SAFETY

  • IEC 62477-1 Safety requirements for power electronic converter systems and equipment.
  • IEC 60529 Degrees of protection provided by enclosures (IP).
