SINE GPU - Military 28 VDC GPU

Free Quote
Military 28 VDC GPU
Military 28 VDC GPU

Our Military 28 VDC GPUs are continuous DC power supply units that supply DC power to aircraft that are on the ground to start the engine and the APU (Auxiliary Power Unit) of the aircraft as well as for the on-board power supply.

Input
Input

• Power Factor Correction (PF=1)

Technology
Technology

State of the art semiconductor technology (IGBT) guarantee Unity Power Factor and Low Input Harmonics (THDi < 1.5%).

Options
Options

The Military 28 VDC GPUs are available in two options: mobile and fixed.

• 300 A continuous - 1200 A Peak load

• 600 A continuous - 2400 A Peak load.

Output
Output

• AC-DC Converter;

• Galvanic isolated AC-DC Converter

Efficiency
Efficiency

• Up to 90% efficiency;

• Green Standby Function - losses: 20 W;

• No load losses: < 600W.

UI/UX Design

Build the product you need on time with an experienced team that uses a clear and effective design process.

Dedicated Team

Build the product you need on time with an experienced team that uses a clear and effective design process.

UI/UX Design

Build the product you need on time with an experienced team that uses a clear and effective design.

Dedicated Team

Over the past decade, our customers succeeded by leveraging Intellectsoft’s process of building, motivating.

Gallery

*Note: All images are merely representative. For detailed information regarding size, weight, and other technical details, download the sheets available in the download section below.

Military 28 VDC GPU mobile

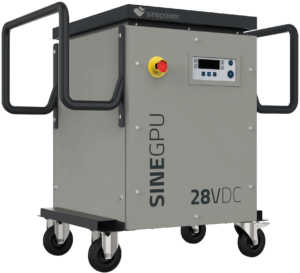

28 VDC GPU – Mobile
Military 28 VDC GPU

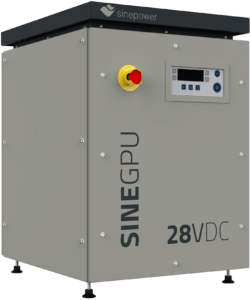

28 VDC GPU – Fixed

Downloads

28 VDC GPU - Mobile
28 VDC GPU - Fixed

Specifications

Standards

AVIATION

  • ISO 6858 Aircraft ground support electric supplies.

MILITARY

  • MIL-STD-704 Aircraft electric power characteristics.

EMC

  • EN 61000-6-4 EMC - Generic emission standard.
  • EN 61000-6-2 EMC - Generic immunity standard.

SAFETY

  • IEC 62477-1 Safety requirements for power electronic converter systems and equipment.
  • IEC 60529 Degrees of protection provided by enclosures (IP).
