Static Frequency Converter | Solid State

10KVA - 400KVA - 400Hz SFC | SINE33I SFC

SINE33I SFC
SINE33I SFC

A Static Frequency Converter converts the source power with a specific input voltage and frequency into a different output voltage and frequency depending on the client's requirements. These Solid State Frequency Converters have no moving parts, except for the fans to cool down the system.

Input
Input

• Power Factor Correction (PF=1);

• Low input harmonics (<1.5% THDi), to comply with the strictest regulations at any load.

Technology
Technology

Our high-frequency IGBT Technology (Rectifier and Inverter) guarantees a perfect sinewave input current with low THDi (THDi<1.5%) and unitary power factor (PF=1), perfect for all sorts of extreme electrical conditions (compatible with Genset output).

Options
Options

Sinepower's Static Frequency Converters (SFC units) can be used in a variety of applications: Civil and Military Aviation, Aeronautical industry, Maritime/Nautical Industry (Shore power, Shore to ship power) and Manufacturing sector.

Output
Output

• 400Hz;

• 4 Quadrant Operation (better response of the system and a safer operation for NBPT);

• Vector control Inverter for better response and higher efficiency.

Efficiency
Efficiency

Our SFCs are highly efficient - up to 95%.

Galery

sinepower static frequency converter 400hz 10 kva 15 kva

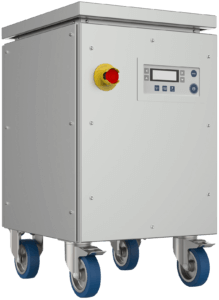

SFC 400Hz – 10 KVA – 15 KVA

sinepower static frequency converter 400hz 20 kva 30 kva

SFC 400Hz – 20 KVA – 30 KVA

sinepower static frequency converter 400hz 30 kva 90 kva

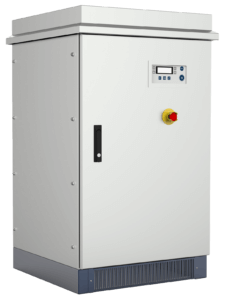

SFC 400Hz – 30 KVA – 90 KVA

sinepower static frequency converter 400hz 120 kva 180 kva

SFC 400Hz – 120 KVA – 180 KVA

sinepower static frequency converter 400hz 300 kva 400 kva

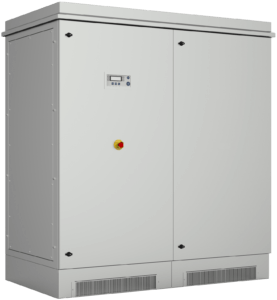

SFC 400Hz – 300 KVA – 400 KVA

Specifications

Standards

EMC

  • EN 61000-6-4 EMC - Generic emission standard.
  • EN 61000-6-2 EMC - Generic immunity standard.

SAFETY

  • IEC 62477-1 Safety requirements for power electronic converter systems and equipment.
  • IEC 60529 Degrees of protection provided by enclosures (IP).

Donwloads

 Available Soon
