Ground Power Unit | Solid State

28 VDC GPU - SINEDCGPU

28 VDC GPUs
28 VDC GPUs

Are continuous DC power supply units that supply DC power to aircraft that are on the ground to start the engine and the APU (Auxiliary Power Unit) of the aircraft as well as for the on-board power supply.

Range
Range

• 300 A continuous - 1200 A Peak load

• 600 A continuous - 2400 A Peak load.

Technology
Technology

State of the art semiconductor technology (IGBT) guarantee Unity Power Factor and Low Input Harmonics (THDi < 1.5%).

Options
Options

The 28 VDC Units are available in two options: mobile and fixed.

Output
Output

• 800Hz DC-DC Converter;

• Galvanic Isolated DC-DC Converter.

Efficiency
Efficiency

• Up to 90% efficiency;

• Green Standby Function - losses: 20 W;

• No load losses: < 600W.

UI/UX Design

Build the product you need on time with an experienced team that uses a clear and effective design process.

Dedicated Team

Build the product you need on time with an experienced team that uses a clear and effective design process.

UI/UX Design

Build the product you need on time with an experienced team that uses a clear and effective design.

Dedicated Team

Over the past decade, our customers succeeded by leveraging Intellectsoft’s process of building, motivating.

Galery

28 vdc gpu mobile power

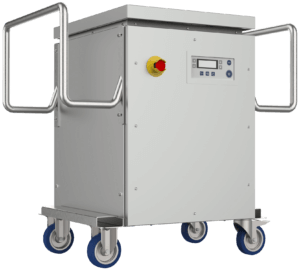

28 VDC GPU – Mobile
28 vdc gpu mobile power

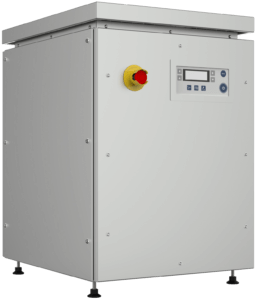

28 VDC GPU – Fixed

Specifications

Standards

AVIATION

  • ISO 6858 Aircraft ground support electric supplies.
  • SAE ARP 5015 Ground equipment 400 Hz ground power performance requirement.

MILITARY

  • MIL-STD-704 Aircraft electric power characteristics.

EMC

  • EN 61000-6-4 EMC - Generic emission standard.
  • EN 61000-6-2 EMC - Generic immunity standard.

SAFETY

  • IEC 62477-1 Safety requirements for power electronic converter systems and equipment.
  • IEC 60529 Degrees of protection provided by enclosures (IP).
News

SINEPOWER has obtained Full AENA certification:

AENA: Protocolo de pruebas en laboratorio oficial para la aceptación de convertidores estáticos de 400 Hz fijos de 90 kVA.

"Aena SME, S.A. is a state-owned company that manages general interest airports and heliports in Spain."

Donwloads

 Available Soon
